Code highlighting

Sigasi supports syntax and semantic code highlighting. This is sometimes called syntax and semantic coloring, even though it can also apply text styling such as cursive, bold, etc.

Syntax highlighting: colors and styles code according to lexical classification (such as keyword or string). Always present, even for HDL files outside of projects or when the Sigasi language server hasn’t initialized yet.
Semantic highlighting: colors and styles code according to meaning (different colors for constants and signals). Only activate for HDL files in projects. Additionally, the file needs to be mapped.

Note that some VS Code themes might not support semantic highlighting. If you appear to be missing this feature, ensure you’re using one of the default VS Code themes.

In themes that support semantic highlighting, you’ll see that names like those of a port, signal, or type are a different color (light blue) from language keywords (purple).

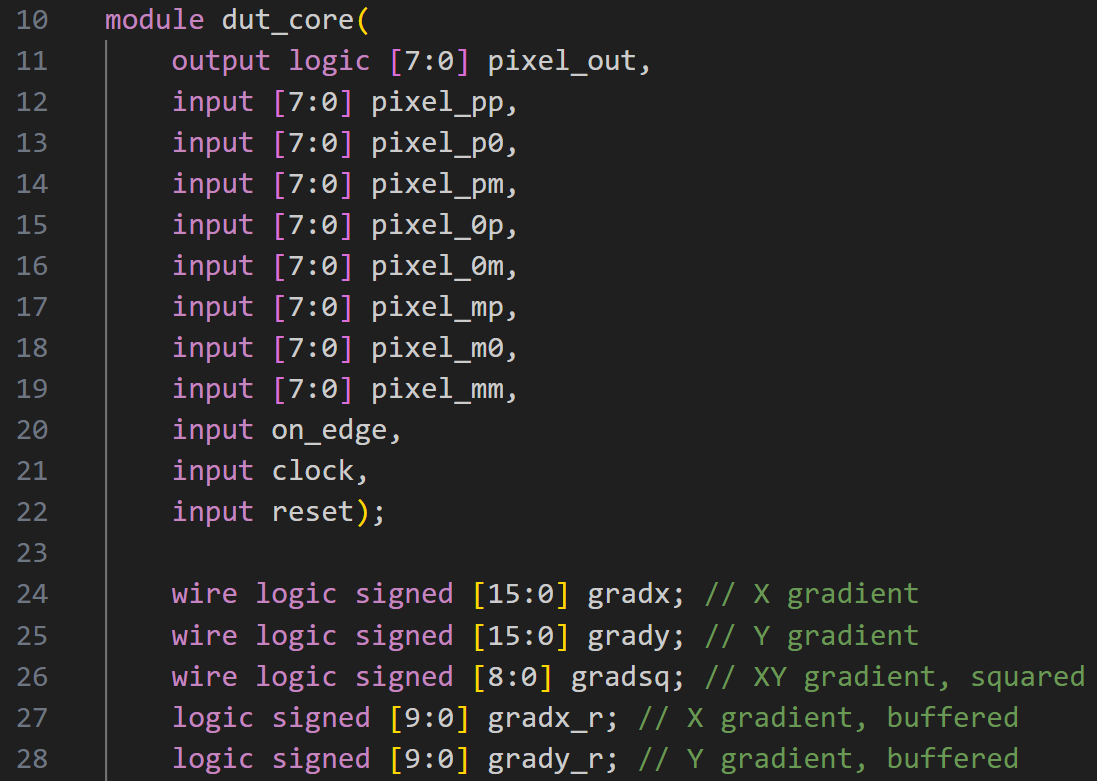

In themes that do not support semantic highlighting, names such as those of a port, signal, or type will have the default text color (white).

Customizing your setup

Semantic highlighting colors—as well as the font style—can be customized to your wishes as follows:

Open VS Code Settings: Navigate to File > Preferences > Settings and search for editor.semanticTokenColorCustomizations . Click Edit in settings.json.
Edit or add your rules: Modify the existing rules or add new ones based on the examples provided below. For reference, all semantic tokens are listed below.
Save your changes: Once you’ve made your customizations, save the settings file. The new semantic coloring will be applied immediately.

Example settings

Find examples of the semantic coloring configuration below. Ensure you fill in the name of your theme instead of Name of theme 1. To find your current theme name, refer to our Theming page.

Dark theme

JSON
{
  "editor.semanticTokenColorCustomizations": {
    "[Name of theme]": { // TODO fill in name of theme
      "enabled": true,
      "rules": {
        // Verilog and SystemVerilog
        "sigasiCoverageGroup:systemverilog": "#4EC9B0",
        "sigasiCoveragePoint:systemverilog": "#71CBFC",
        "sigasiCoverageCross:systemverilog": "#49B8F4",
        "sigasiCoverageBin:systemverilog": "#71CBFC",
        "sigasiNamedSequence:systemverilog": "#D0D092",
        "sigasiNamedProperty:systemverilog": "#C5C57B",
        "sigasiClockingBlock:systemverilog": "#49B8F4",
        "sigasiConstraint:systemverilog": "#4FC1FF",
        "sigasiRandsequenceProduction:systemverilog": "#D0D092",
        "sigasiAssertion:systemverilog": "#2ABEA1",

        // VHDL
        "sigasiPort:vhdl": "#3f9acc",
        "sigasiConditionalProcessingVariable:vhdl": "#457dab",
        "sigasiSignal:vhdl": "#4FC1FF",
        "sigasiSubprogramParameterVariable:vhdl": "#9CDCFE",
        "sigasiSubprogramParameterSignal:vhdl": "#4FC1FF",
        "sigasiSubprogramParameterConstant:vhdl": "#E5C07B",
        "sigasiConstant:vhdl": "#E5C07B",
        "sigasiAttribute:vhdl": "#eacd95",
        "sigasiGenericConstant:vhdl": {
          "italic": true,
          "foreground": "#E5C07B"
        },
        "sigasiGenericType:vhdl": {
          "italic": true,
          "foreground": "#E5C07B"
        },
        "sigasiGenericSubprogram:vhdl": {
          "italic": true,
          "foreground": "#DCDCAA"
        }
      }
    }
  }
}

Light theme

JSON
{
  "editor.semanticTokenColorCustomizations": {
    "[Name of theme]": { // TODO fill in name of theme
      "enabled": true,
      "rules": {
        // Verilog and SystemVerilog
        "sigasiCoverageGroup:systemverilog": "#4EC9B0",
        "sigasiCoveragePoint:systemverilog": "#00139F",
        "sigasiCoverageCross:systemverilog": "#0119CE",
        "sigasiCoverageBin:systemverilog": "#00139F",
        "sigasiNamedSequence:systemverilog": "#806733",
        "sigasiNamedProperty:systemverilog": "#857045",
        "sigasiClockingBlock:systemverilog": "#0119CE",
        "sigasiConstraint:systemverilog": "#0070C1",
        "sigasiRandsequenceProduction:systemverilog": "#806733",
        "sigasiAssertion:systemverilog": "#448DA1",

        // VHDL
        "sigasiPort:vhdl": "#004e87",
        "sigasiConditionalProcessingVariable:vhdl": "#4d4dff",
        "sigasiSignal:vhdl": "#0070C1",
        "sigasiSubprogramParameterVariable:vhdl": "#001080",
        "sigasiSubprogramParameterSignal:vhdl": "#0070C1",
        "sigasiSubprogramParameterConstant:vhdl": "#b78b12",
        "sigasiConstant:vhdl": "#b78b12",
        "sigasiAttribute:vhdl": "#926f0e",
        "sigasiGenericConstant:vhdl": {
          "italic": true,
          "foreground": "#b78b12"
        },
        "sigasiGenericType:vhdl": {
          "italic": true,
          "foreground": "#b78b12"
        },
        "sigasiGenericSubprogram:vhdl": {
          "italic": true,
          "foreground": "#795E26"
        }
      }
    }
  }
}

Token descriptions

The token keywords below are used to configure the styling of SystemVerilog and VHDL constructs.

Token	Construct
`sigasiCoverageGroup`	A SystemVerilog coverage group
`sigasiCoveragePoint`	A SystemVerilog coverage point
`sigasiCoverageCross`	A SystemVerilog coverage cross
`sigasiCoverageBin`	A SystemVerilog coverage bin
`sigasiNamedSequence`	A SystemVerilog named sequence
`sigasiNamedProperty`	A SystemVerilog named property
`sigasiClockingBlock`	A SystemVerilog clocking block
`sigasiConstraint`	A SystemVerilog constraint
`sigasiRandsequenceProduction`	A SystemVerilog randsequence production
`sigasiAssertion`	A SystemVerilog assertion
`sigasiPort`	A VHDL port
`sigasiPort.sigasiInputPort`	A VHDL input port
`sigasiPort.sigasiOutputPort`	A VHDL output port
`sigasiPort.sigasiInoutPort`	A VHDL inout port
`sigasiConditionalProcessingVariable`	A VHDL conditional processing variable
`sigasiSignal`	A VHDL signal
`sigasiSubprogramParameterVariable`	A VHDL variable parameter of a task or function
`sigasiSubprogramParameterSignal`	A VHDL signal parameter of a task or function
`sigasiSubprogramParameterConstant`	A VHDL constant parameter of a task or function
`sigasiConstant`	A VHDL constant or enumeration literal
`sigasiAttribute`	A VHDL attribute
`sigasiGenericConstant`	A VHDL generic constant value
`sigasiGenericType`	A VHDL generic type declaration
`sigasiGenericSubprogram`	A VHDL generic function or task
